Hybrid Solar System: Customizable Off-Grid Solution (5-∞kW)

• Full-Scale Customization

Our system is fully configurable to match your specific requirements:

Scalable Power Output: Choose from 5kW to ∞ kW configurations, or mix/match components to build a system that fits your energy consumption (e.g., 8kW for a small home, 15kW+ for a business).Tailored Component Selection: Customize the number of solar panels, battery capacity (expandable lithium-ion battery banks with mobile casters for easy mobility), and inverter type to align with your load demands, budget, and space constraints.

Geographic & Environmental Adaptability: Optimize panel wattage, tilt angle, and weather resistance (waterproof, dustproof, UV-resistant) based on your location’s sunlight conditions, climate, and installation environment.

• Hybrid System Flexibility

• Cost & Eco-Friendly Benefits

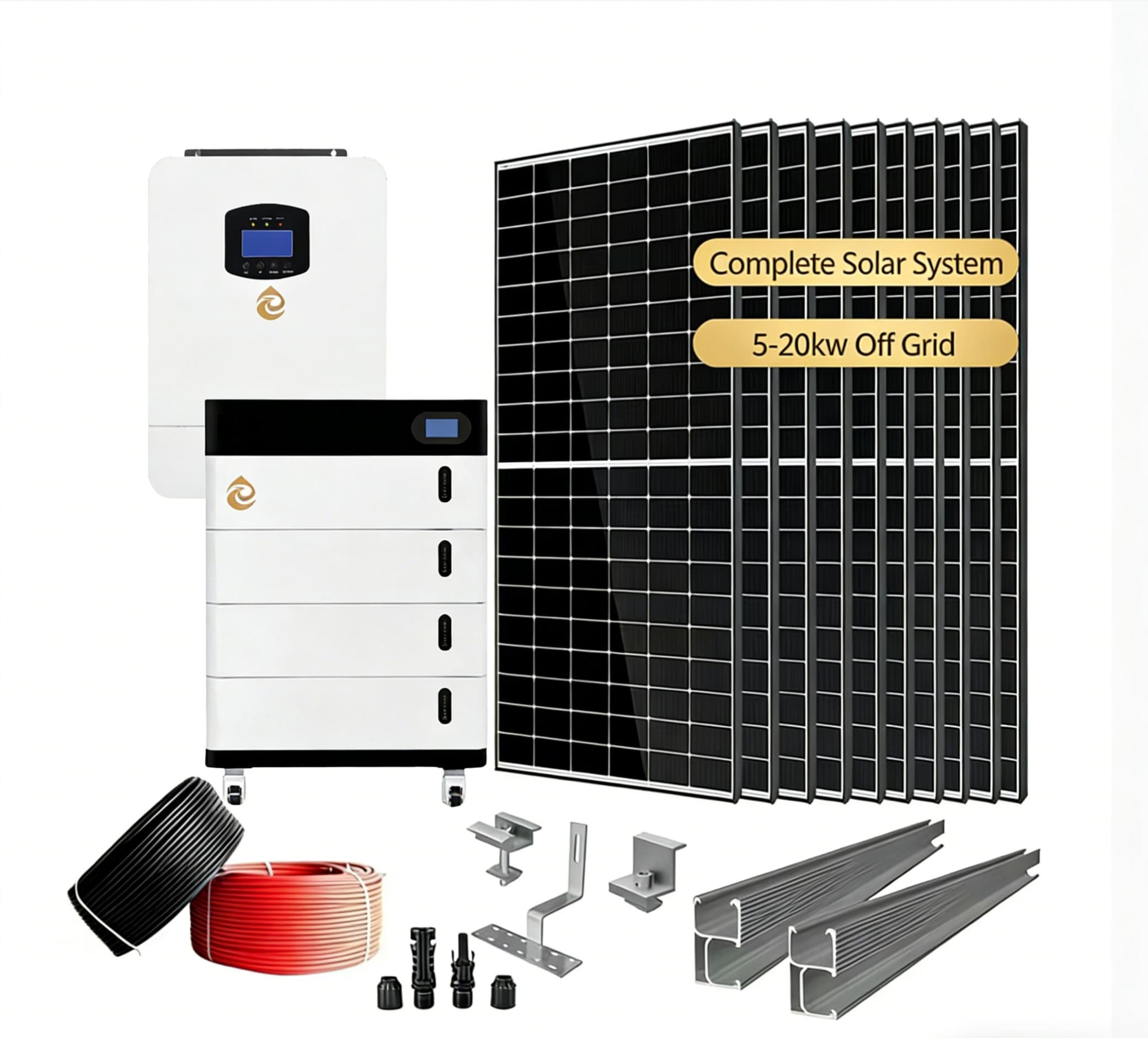

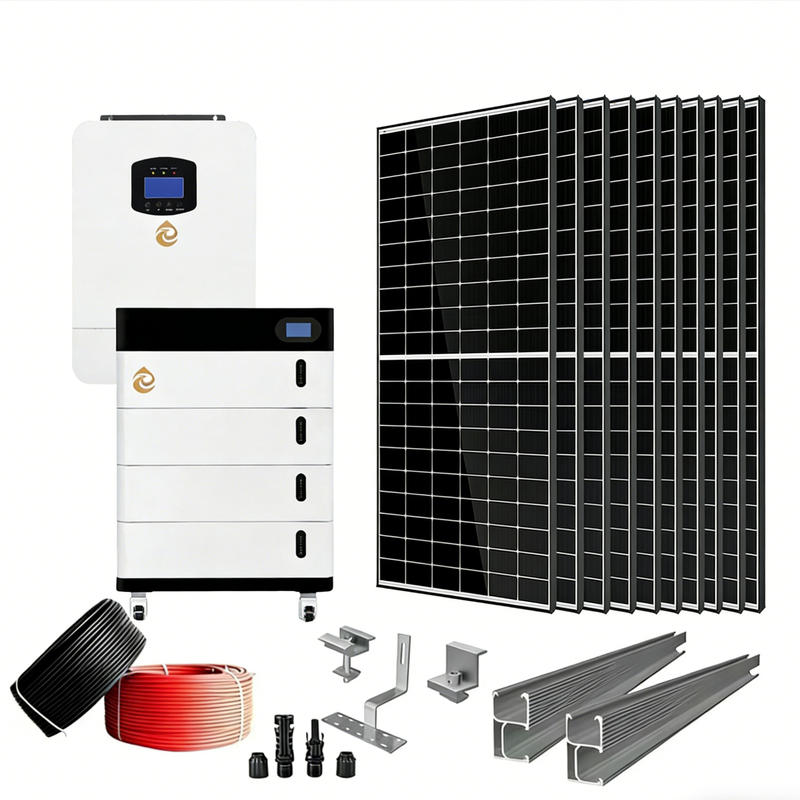

System Overview

Specifications of the products

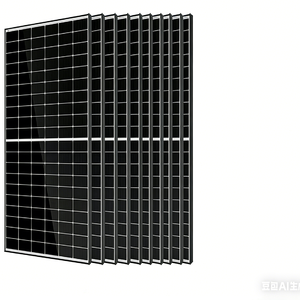

• Photovoltaic panel

•  25 years Warranty •  Highest conversion efficiency of 20% •  Anti-reflective and anti-soiling surface power loss from dirt and dust •  Excellent mechanical load resistance •  PID Resistant,High salt and ammonia resistance

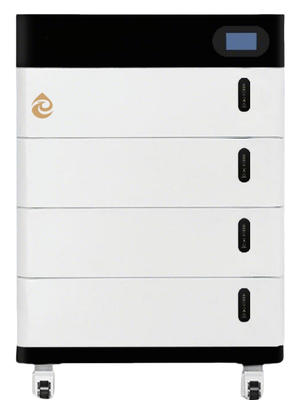

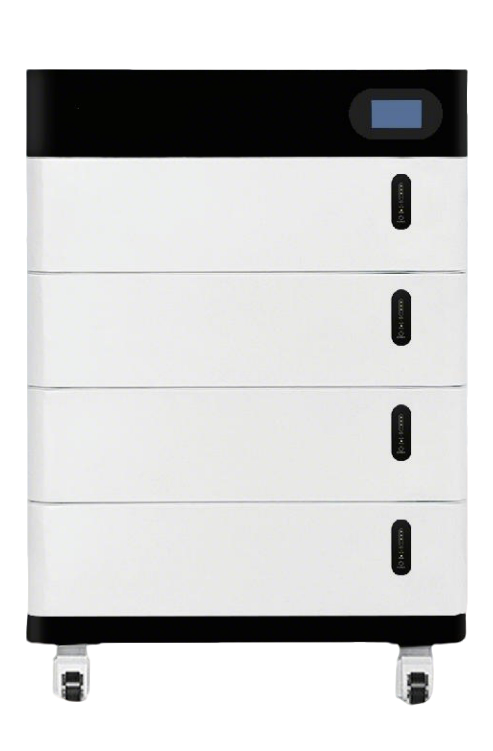

Box-type energy storage battery

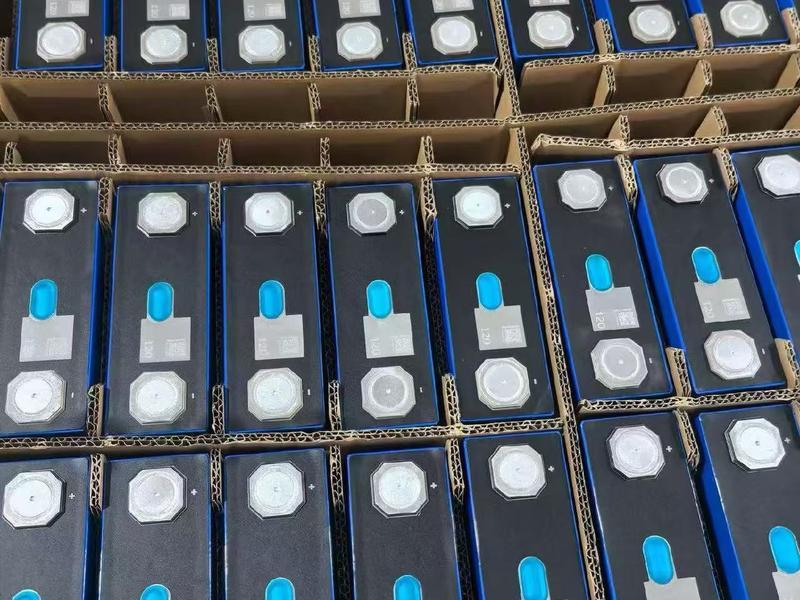

•  GEL Battery •  Lithium Battery •  Without a battery bank (or a generator) it'll be lights out by sunset. A battery bank is essentially a group of batteries wired together

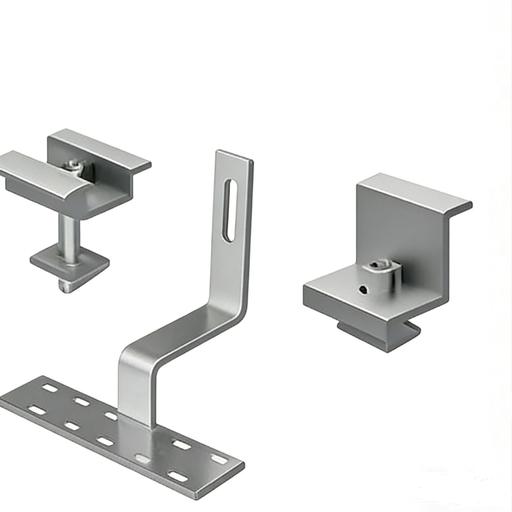

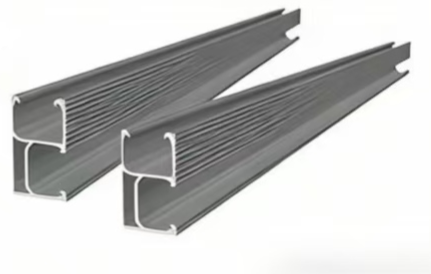

Photovoltaic system bracket

•  Residential roof(Tilt roof) •  Commercial roof(Flat roof&workshop roof) •  Ground solar mounting system •  Vertical wall solar mounting system •  All aluminum structure solar mounting system •  Car parking solar mounting system •  Aluminum components    lateral pressure assembly    Medium voltage component

Inverter

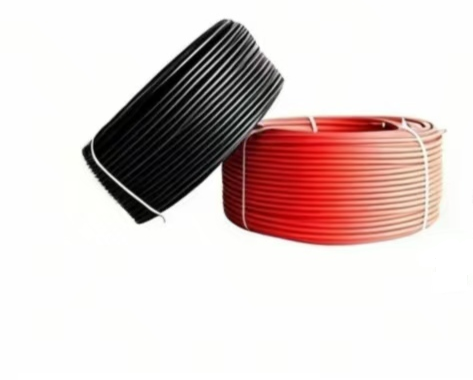

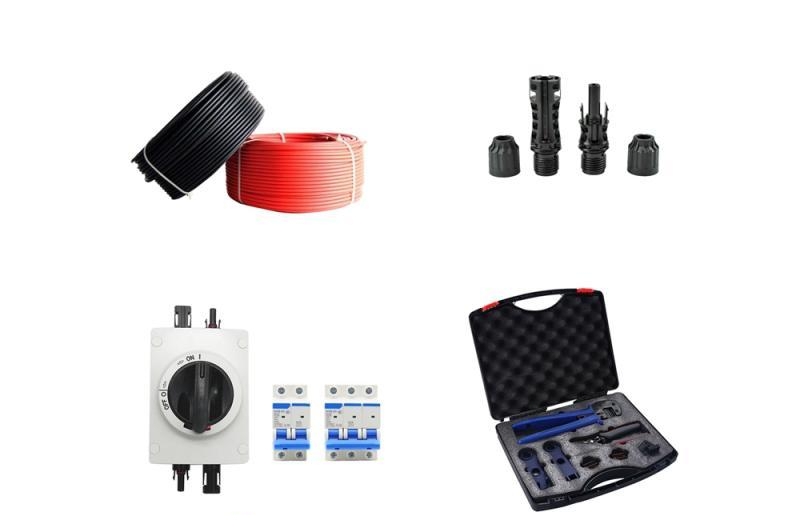

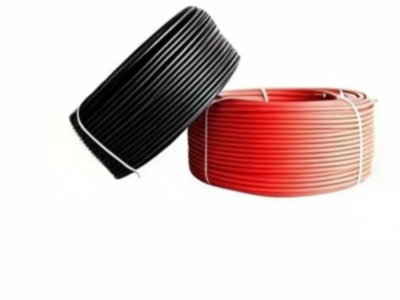

Positive and negative cable

•  PV cable 4mm2/6mm2/10mm2,etc •  AC cable •  DC/AC switches •  DC/AC breakers •  MC4 connector •  AC/DC Combiner box •  AC distribution box
